| Zahlungsart: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Minimum der Bestellmenge: | 1 set |
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining
Showroom Location: None
Compatible Brand: Other
Year: -
Arbeitszeit: 10001-20000

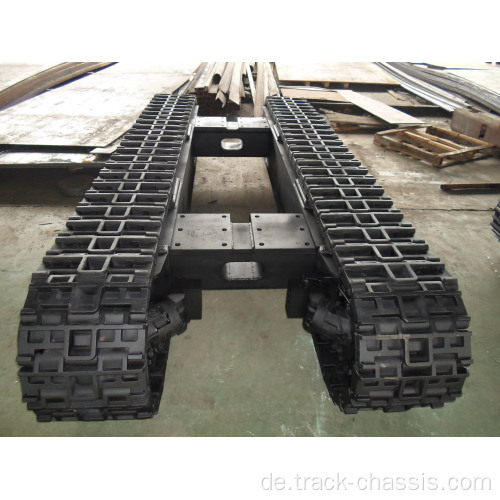

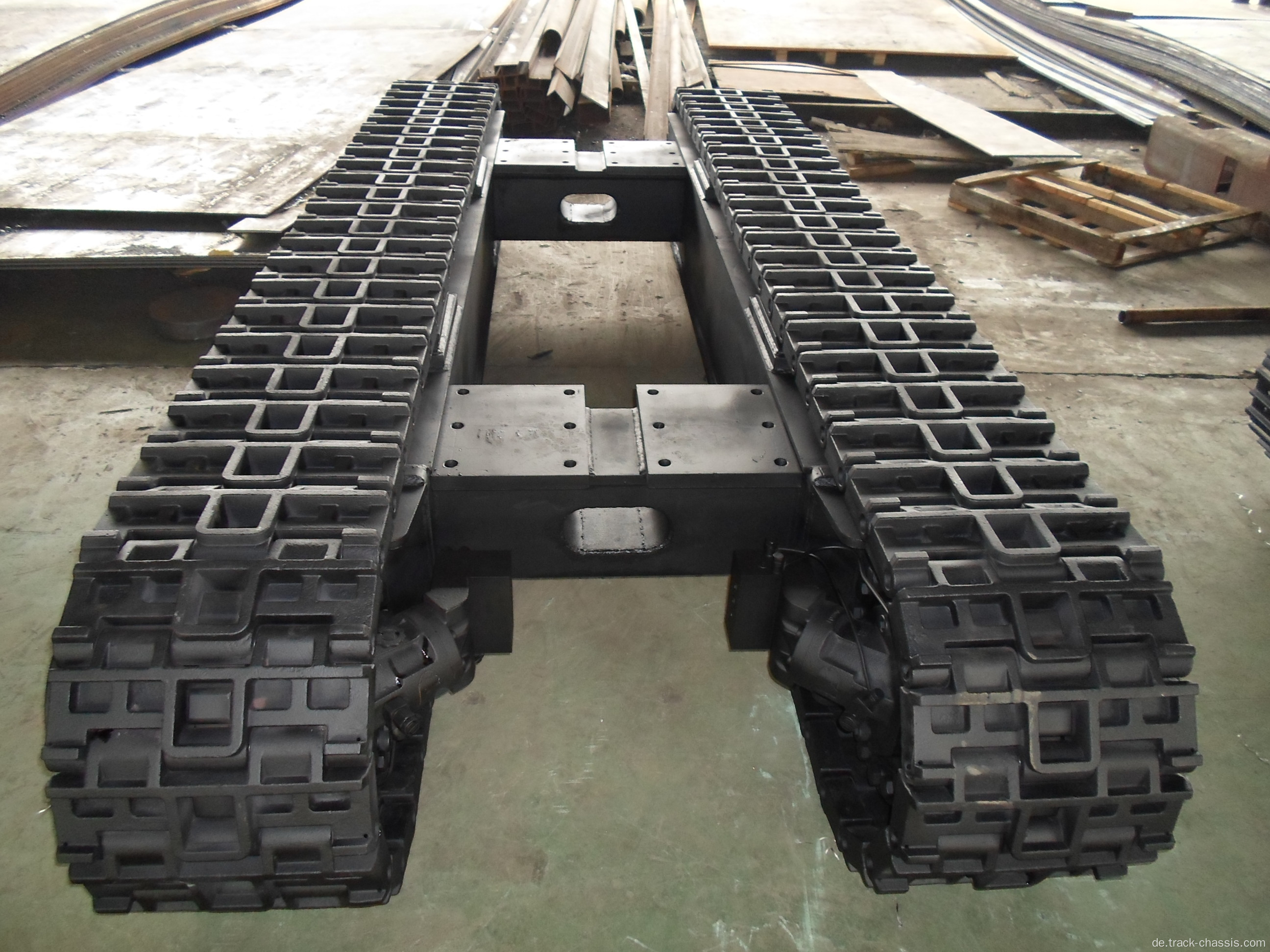

Type: mini crawler undercarriage
Loading Capacity: 7 ton
Payload: 5.5 ton
Max Gradeability: 35%
Customized Service: Verfügbar und kostenlos
Farbe: Schwarz oder per Kunde
Anwendung: Rubber Track Drive System machine
After Warranty Service: Video Technical Support
After-sales Service Provided: Video Technical Support
Place Of Origin: Zhejiang, China
| Verkaufseinheiten | : | set |
The file is encrypted. Please fill in the following information to continue accessing it
|
Length
|
1200mm
|
|
|
||
|
Loading Capacity
|
1000 KG(set)
|
|
|
||
|
Payload
|
500-600 KG(set)
|
|
|
||
|
Distance between center
|
829 mm
|
|
|
||
|
Pitch
|
72 mm
|
|
|
||
|
Track width
|
180 mm
|
|
|
||
|
Track Frame
|
No/Weld/Bolt
|
|
|
||
|
Motor Displacement
|
16.1 ml/r
|
|
|
||
|
Max speed
|
2.3 km/h(Each side 23L/min)
|
|
|
||
|
Max Output Torque(each side)
|
1150N.m
|
|
|
||
|
Max Gradeability
|
35%
|
|
|
||
Produktdetails:
1.Customized Track Frame. Wir können die Gummi -Crawler -Fahrwerk entsprechend den Bedürfnissen des Kunden angepasst.
2. Wartung: Tipps, mit denen Kunden das Crawler -Fahrwerk aufrechterhalten und die Lebensdauer länger erhalten können.
3. Gute Ersatzteile
