Ningbo Beilun Mingrui Hydraulic Equipment Co., Ltd
| Zahlungsart: | L/C,Western Union,D/P,D/A,T/T,Others |
| Transport: | Ocean,Land,Air |
Schatten:
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining
Showroom Location: None
Compatible Brand: Other
Year: 2016
Working Hours: 10001-20000
Type: Hydraulic rubber track chassis
Loading Capacity: 8 ton
Payload: 6.2ton
Other Motor Choice: Available
Max Gradeability: 25°
Customized Service: Available and free
Color: Black or Per to Customer
Anwendung: rubber crawler chassis machine
Warranty: 1 Year
Place Of Origin: Zhejiang, China
| Verkaufseinheiten | : | set |
The file is encrypted. Please fill in the following information to continue accessing it
|

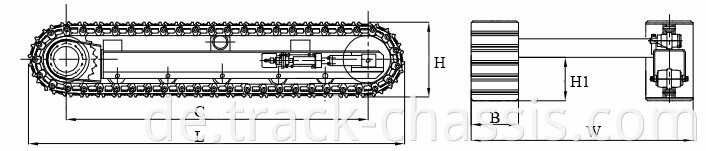

Length
|
2612mm
|
|
|
||
|
Loading Capacity
|
8000 KG
|
|
|
||
|
Payload
|
6200 KG
|
|
|
||
|
Distance between center
|
2053 mm
|
|
|
||
|
Pitch
|
72.5 mm
|
|
|
||
|
Track width
|
400 mm
|
|
|
||
|
Track Frame
|
Weld
|
|
|
||
|
Motor Displacement
|
49.2/26.3 ml/r
|
|
|
||
|
Max speed
|
1.9/3.6 km/h
|
|
|
||
|
Max Output Torque(each side)
|
8600/4600N.m
|
|
|
||
|
Max Gradeability
|
30%
|
|
|
||
Produktdetails:
1. Maßgeschneiderter Kettenrahmen. Wir können das Gummiraupenfahrwerk an die Bedürfnisse des Kunden anpassen.
2. Wartung: Tipps, die Kunden helfen, das Fahrwerk zu warten und die Lebensdauer zu verlängern.
3.Gute Ersatzteile
Wir können das Gummi-Raupenfahrwerk an Ihre Bedürfnisse anpassen. Oben sind nur einige unserer Modelle aufgeführt.

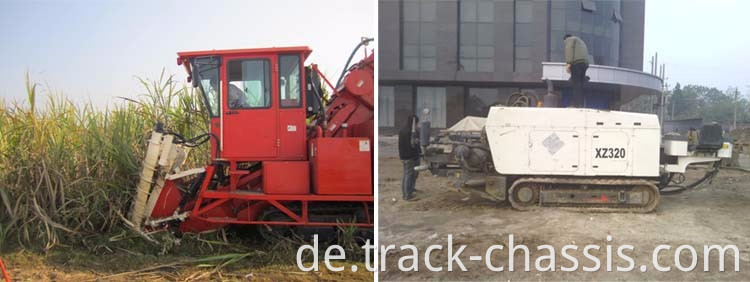

In der Regel kaufen Maschinenfabriken bei uns Raupenfahrwerke und schließen diese an ihre Maschinen an.
